Alpha Probes has proven itself to be a knowledgeable probe card company servicing R&D departments to manufacturing, in the United States and the Far East. Supplying High quality, custom designs, from production test, burn in custom cards to DVT ( Design, Verification testing).
Established back in the 70s , Alpha probes offers high quality, flexibility, fast turn, value for money probe cards, And custom test fixtures, cable, PCB design. All built here in America by experienced engineers.
Phone 719 520 5880

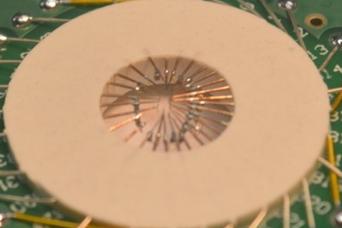

High Pin Count Epoxy Ring Assembly
Epoxy ring probe cards from 1 to 550 probes are in regular production here at Alpha Probes. Semiconductor cards with pitches down to 50µm, designs using multi-tier needles, and multi-die configurations are offered. Resistor Chip probe cards are a specialty of Alpha Probes . Below is an example of 0201 resistors and Capacitors mounted to the inside of the probes Spider.

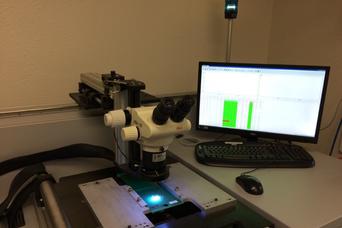

Planarization Test Stations
Alpha Probes uses many types of test / planarization stations for precise X,Y,Z planarity adjustment of assembled probe cards. The station can detect planarity variations in the low microns and ensures that probe card manufactured at Alpha Probes perform at the highest level of customer need.
For probe cards with close pitch or very small bond pads, Alpha Probes always perform a probe card analysis of the card to verify alignment, planarity, leakage, Cres, overlay and other factors to ensure that the card can be immediately placed into service upon receipt.
Ceramic and metallic Blades
Custom designed, built here in Colorado Springs.
looking for a high frequence probe card for development we can design and custom build you a ceramic or mettalic blade card. A arm to custom 4" metallic blade for lazer trim, solar testing, we also offer custom Coax probes.
Probe Card
Alpha Probes offers prompt, high-quality and cost-effective probe card assembly services using a wide range of cantilever technologies. Blade probes using metallic, ceramic, and blade spring probes are designed and assembled in-house to the customers’ requirements, all our blades are custom made
More than 60 probe card types are in stock, from 2" round 70 channel to 12" rectangular 512 channel, catering to customer requirements. Standard 4-1/2" probe cards (48 channel to 256 channels) able to be used in 50mm to 200mm wafer chucks.
Alpha Probes is headquartered in the shadows of the Colorado Rocky Mountains, Colorado Springs, where all our engineers come with at least 20 years of experience within their field. No job is to small, all our probe cards are made here in America
